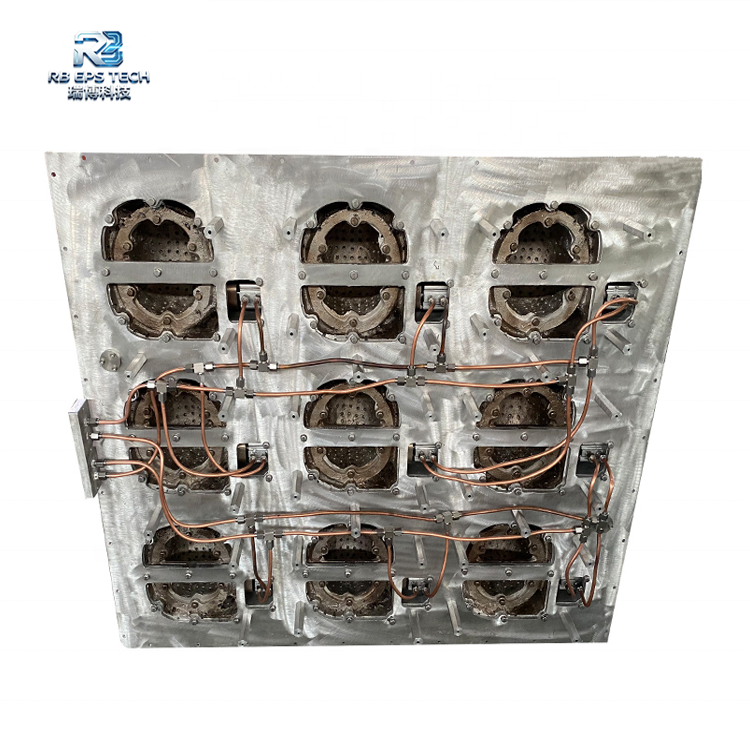

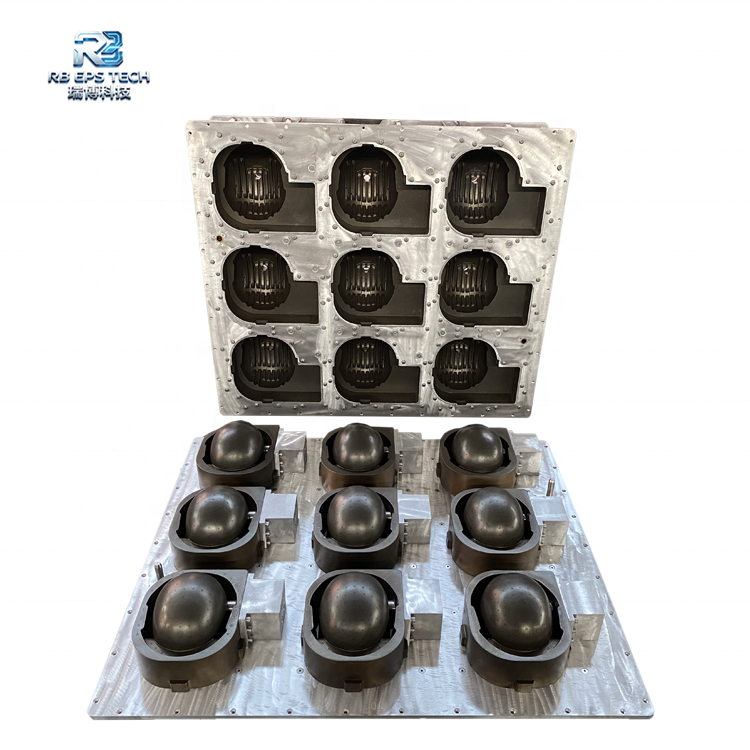

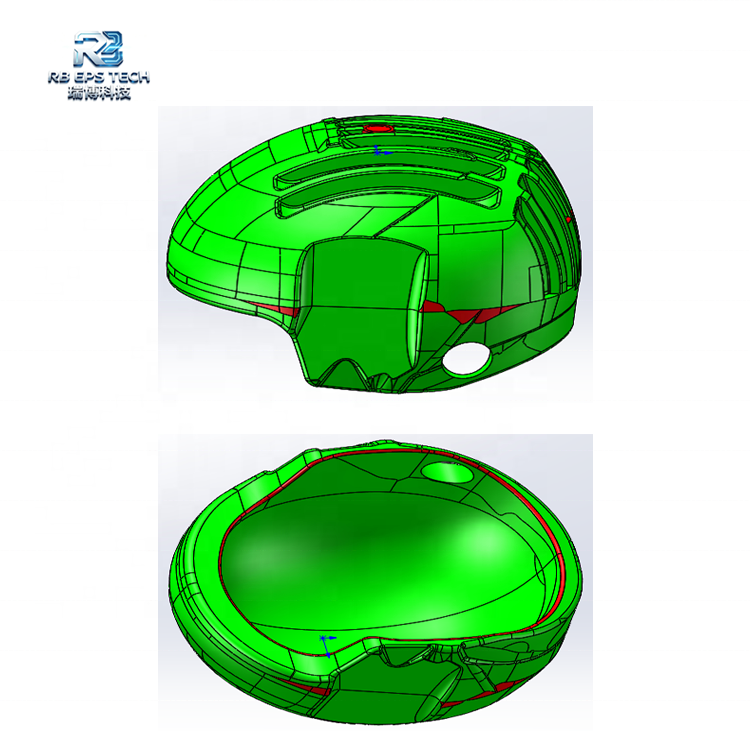

Custom EPS Expanded Polystyrene Bicycle Helmet Mold for Foam Shaping Machine
video

Custom EPS Expanded Polystyrene Bicycle Helmet Mold for Foam Shaping Machine

1.Product drawing & mould design made by engineersProduct drawing confirmedMould drawing confirmed2.Wooden model & Plaster model3.Common casting &Vacuum casting4.CNC Process(Cavity & Core & Press Material)5.Drill Holes/Install Core Vents /Polishing/Match The Mould6.Teflon Coated7
Send Inquiry
Order Tracking

Description

Technical Parameters

Order Tracking List:

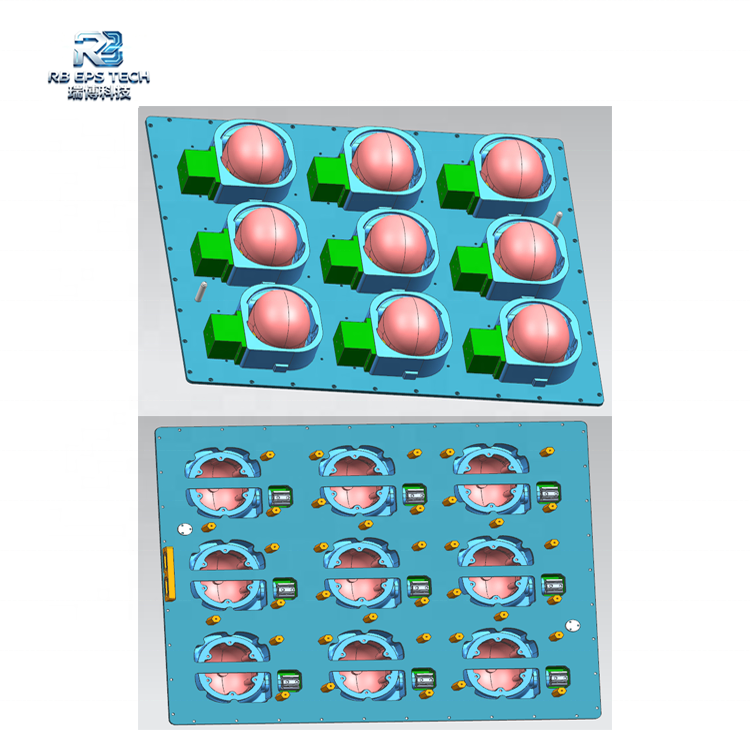

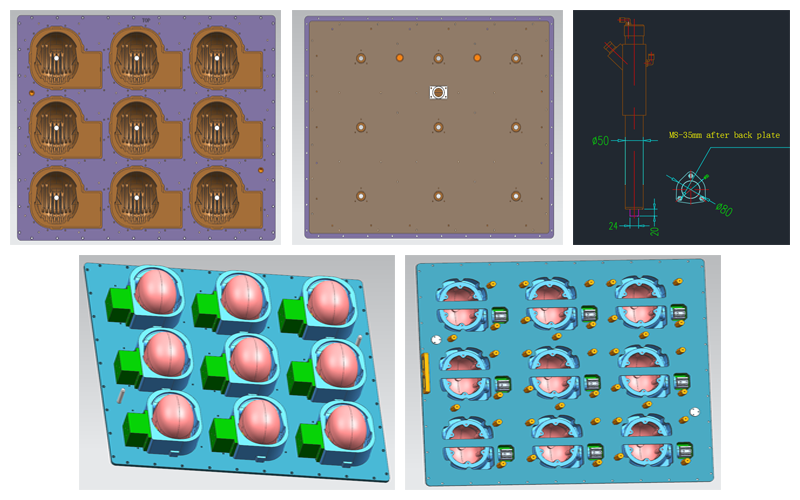

1.Product drawing & mould design made by engineers

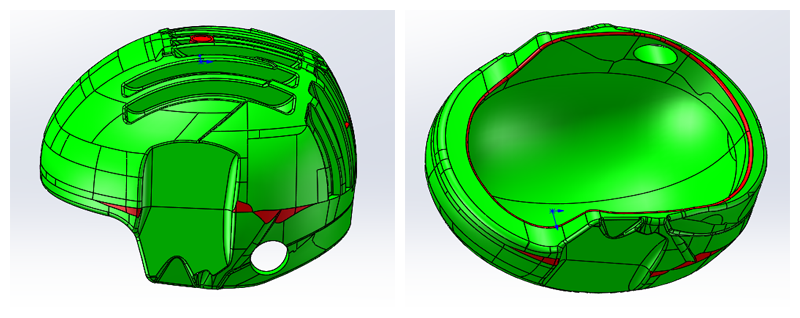

Product drawing confirmed

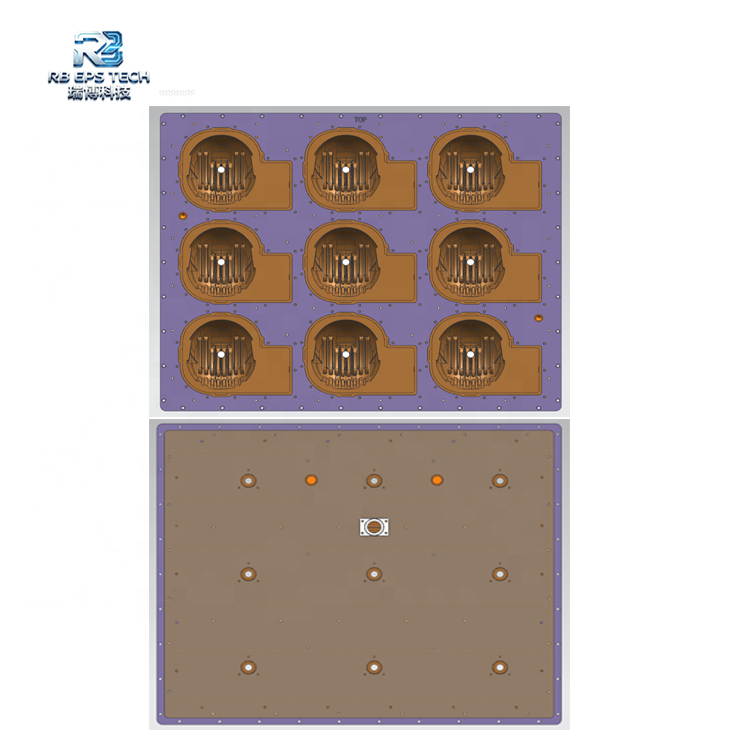

Mould drawing confirmed

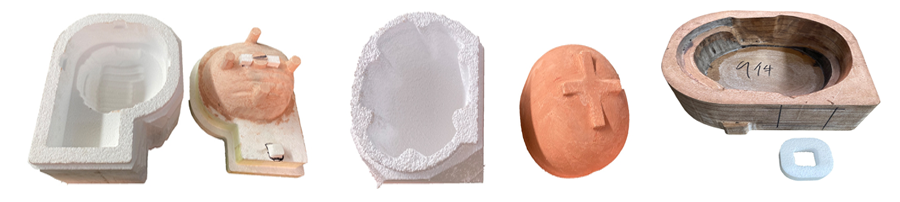

2.Wooden model & Plaster model

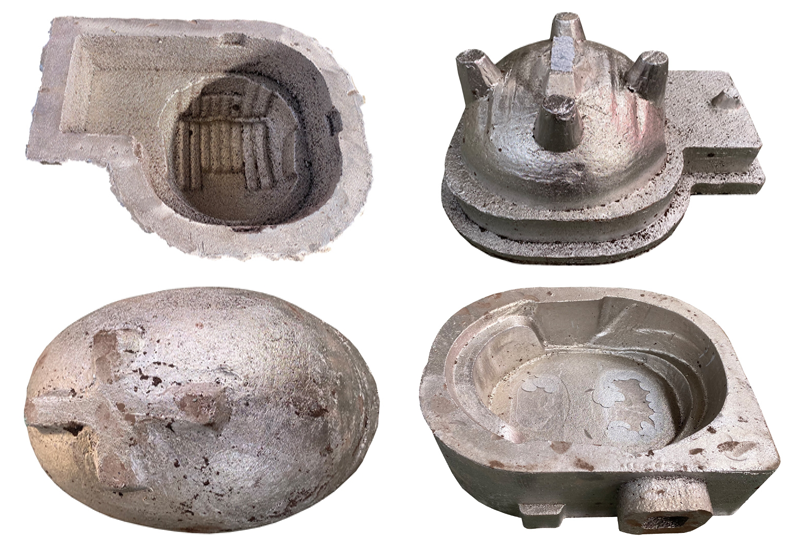

3.Common casting &Vacuum casting

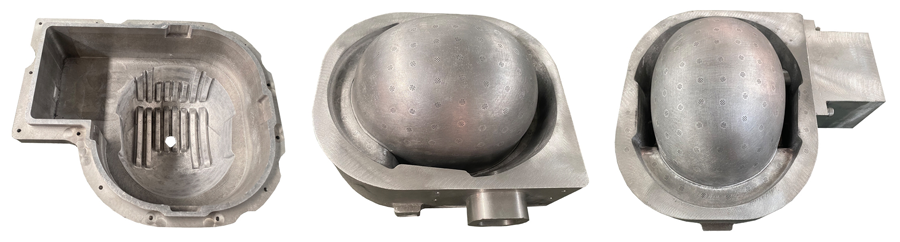

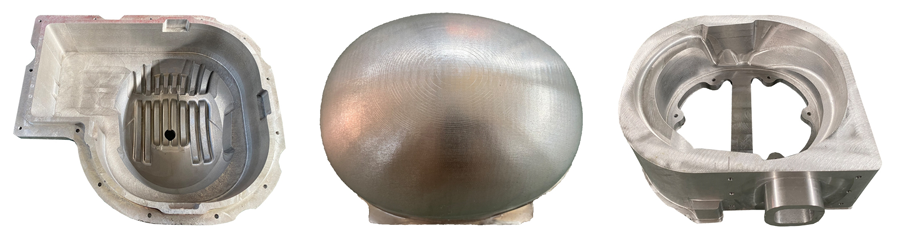

4.CNC Process(Cavity & Core & Press Material)


5.Drill Holes/Install Core Vents /Polishing/Match The Mould

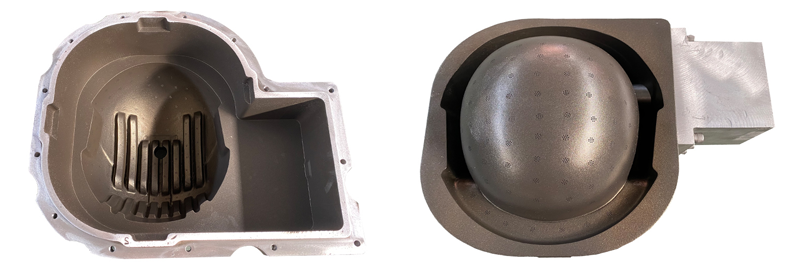

6.Teflon Coated

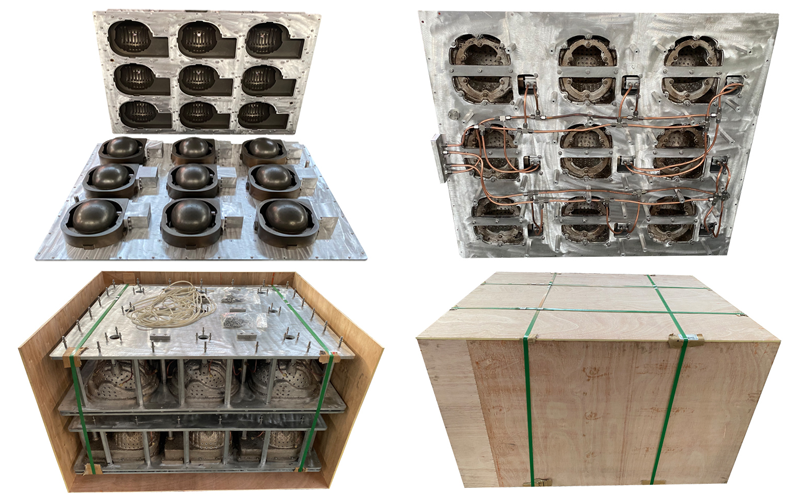

7.Finished Mould(mould testing is available)



Custom EPS Expanded Polystyrene Bicycle Helmet Mold for Foam Shaping Machine

Mould Name

EPS Expanded Polystyrene Helmet Mould

Export to

India

Machine Brand

1412(BES）

Material

EPS

Shrinkage

0.3%

Wall thickness

9-10mm

Cavity

9

Support

SW25mm

Guide pin

Yes

Crack

8mm

Machine Window


Male Plate

(1319.5-1320)*(1119.5-1120)*12mm

Female Plate

(1319.5-1320)*(1119.5-1120)*12mm

Filling Gun Plate

(1269.5-1270)*(1069.5-1070)*16mm
