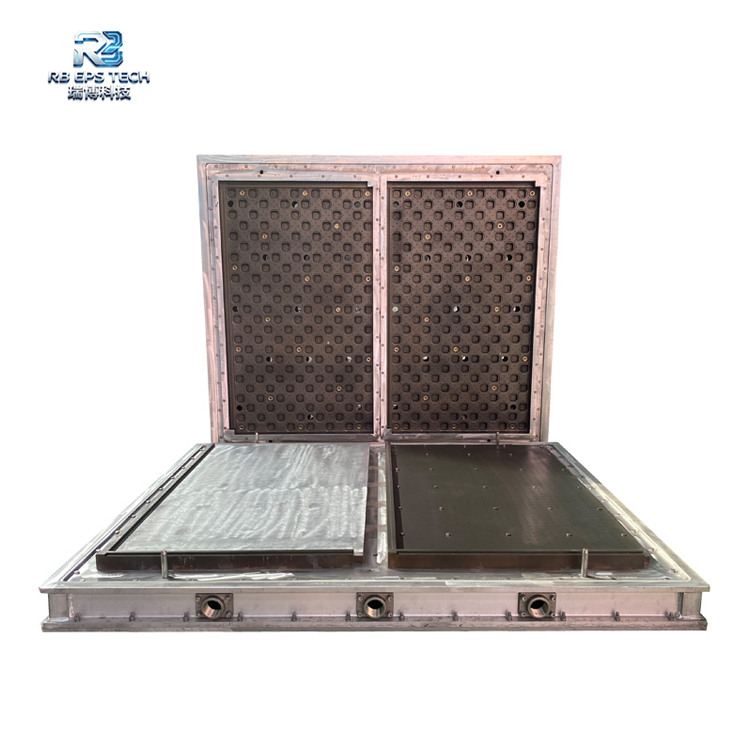

Custom EPS Underfloor Heating Panel Insulation Mold for Foam Molding Machine
Description
Technical Parameters
Order Tracking List:

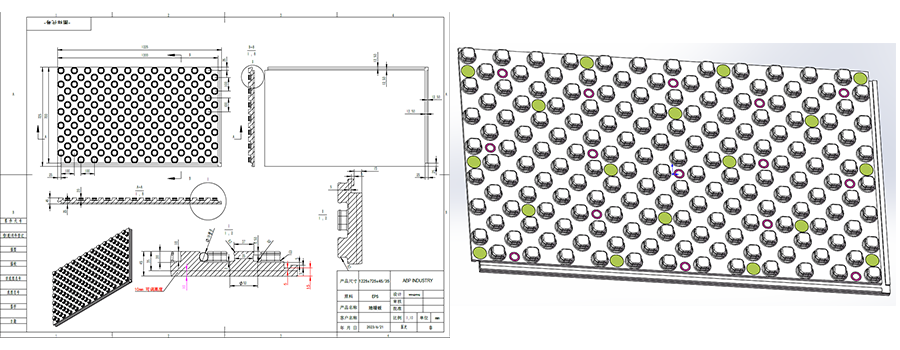

1.Product drawing & mould design made by engineers
Product drawing confirmed

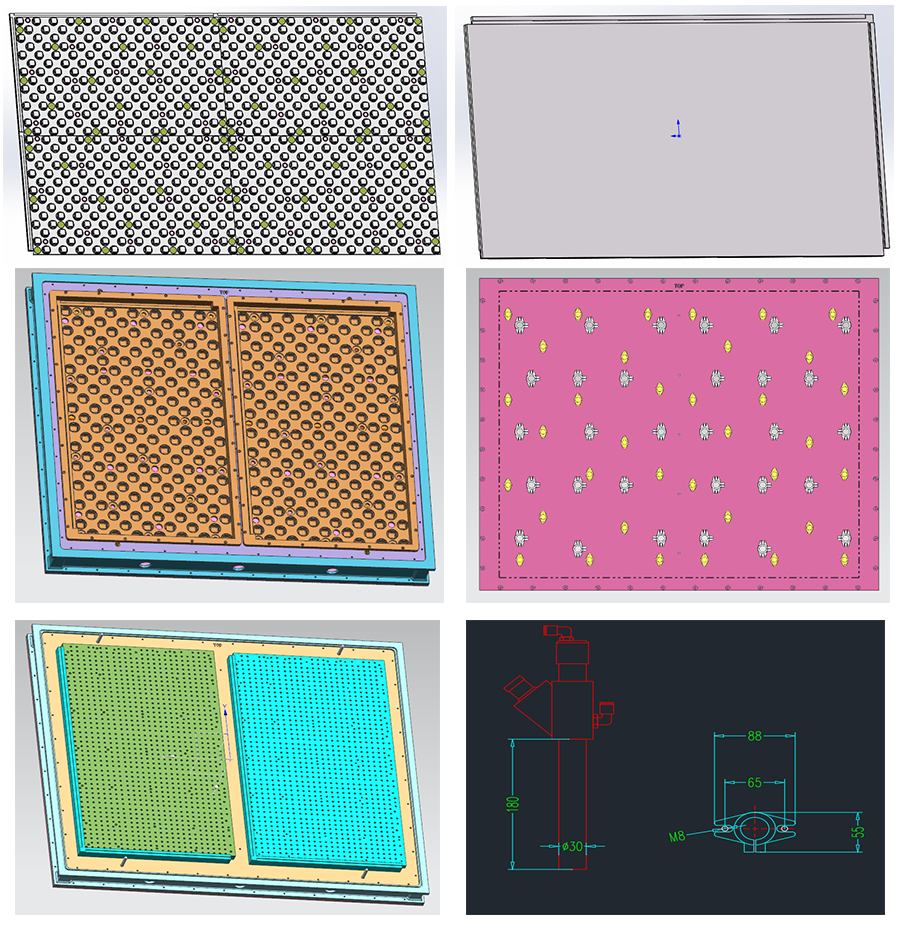

Mould drawing confirmed

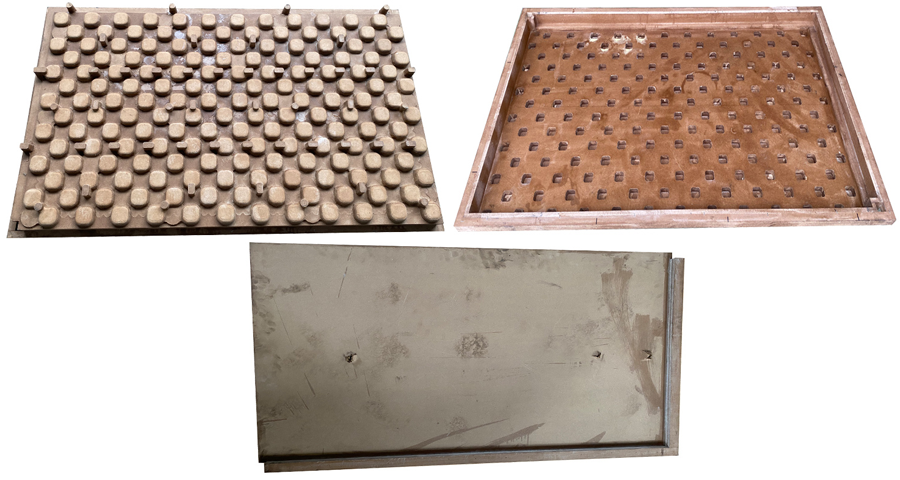

2.Wooden Model

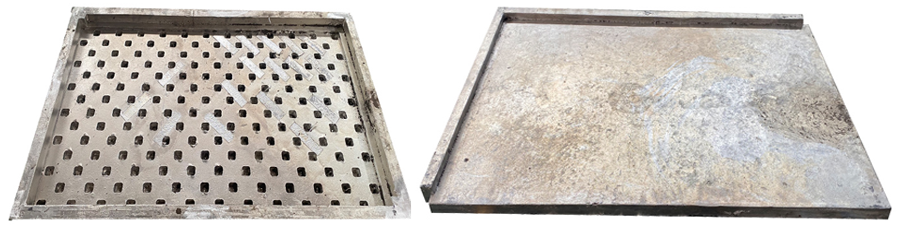

3.Common Casting

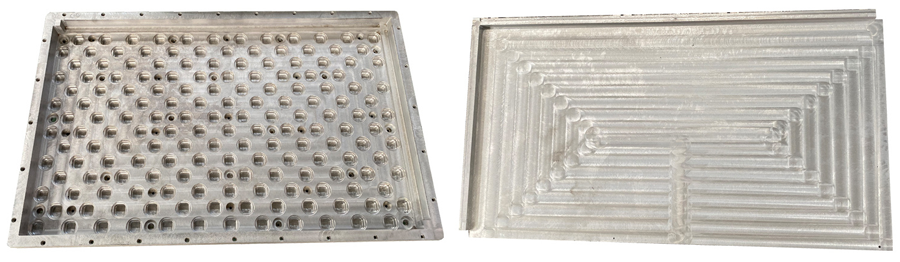

4.CNC Process(Cavity & Core & Press Material)

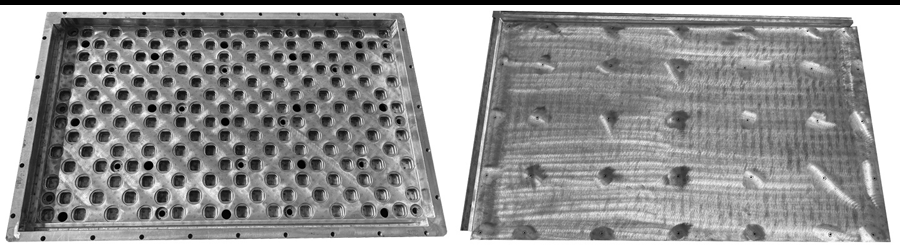

5.Drill Holes/Install Core Vents /Polishing/Match The Mould

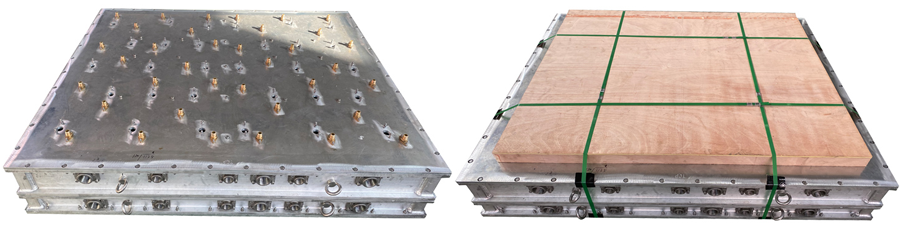

6.Finished Mould(mould testing is available)

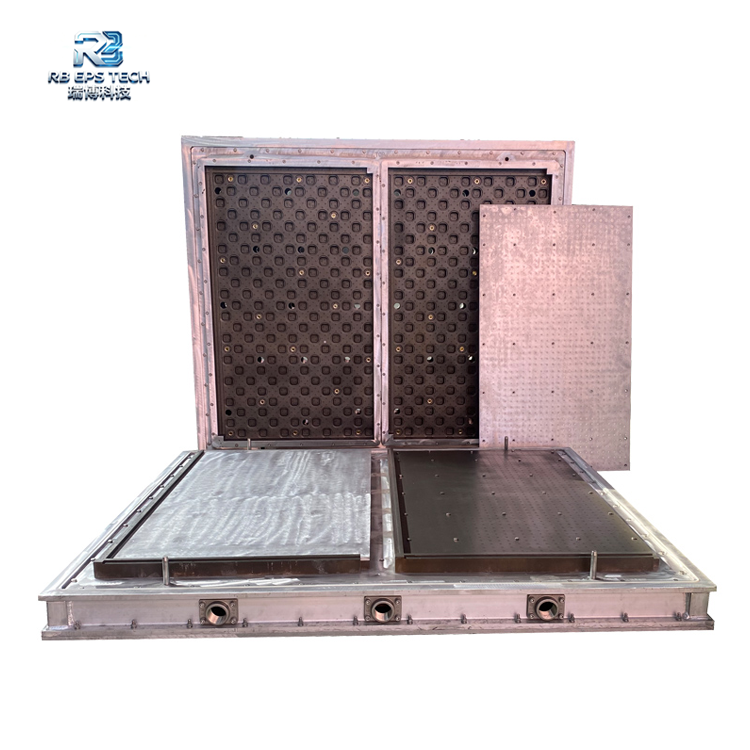

Custom EPS Underfloor Heating Panel Insulation Mold for Foam Molding Machine
Mould Name | EPS Expanded Polystyrene Underfloor Heating Panel Mould |
Export to | Russia |
Machine Brand | 1750(BES) |
Material | EPS |
Shrinkage | 0.3% |
Wall thickness | 9-10mm |
Cavity | 2 |
Support | SW25mm |
Guide pin | Yes |
Crack | |
Machine Window | 1550*1350 |
Male Plate | (1639.5-1640)*(1329.5-1390)*12mm |
Female Plate | (1639.5-1640)*(1329.5-1390)*12mm |
Filling Gun Plate | (1719.5-1720)*(1469.5-1470)*12mm |
