Multi-Cavity EPS Foam Fish Fruit Vegetable Box Mould
video

Multi-Cavity EPS Foam Fish Fruit Vegetable Box Mould

1.Product drawing & mould design made by engineersProduct drawing confirmedMould drawing confirmed2.Wooden Model 3.Common Casting4.CNC Process(Cavity & Core & Press Material)5.Drill Holes/Install Core Vents /Polishing/Match The Mould6.Teflon Coated7.Finished Mould(mould testingis a
Send Inquiry
Order Tracking

Description

Technical Parameters

Order Tracking List:

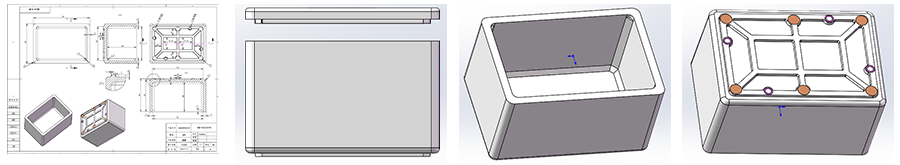

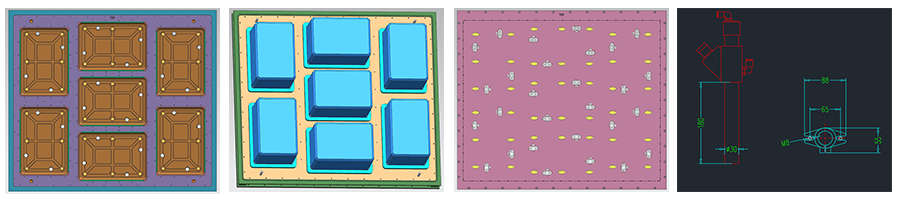

1.Product drawing & mould design made by engineers


Product drawing confirmed


Mould drawing confirmed

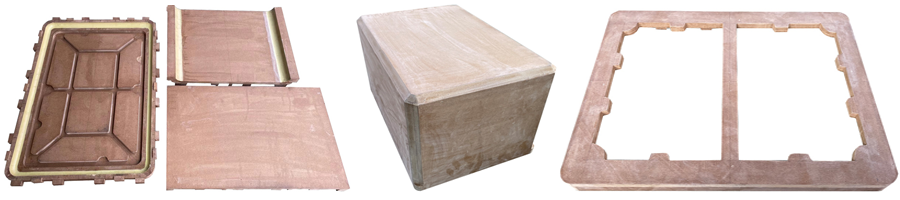

2.Wooden Model

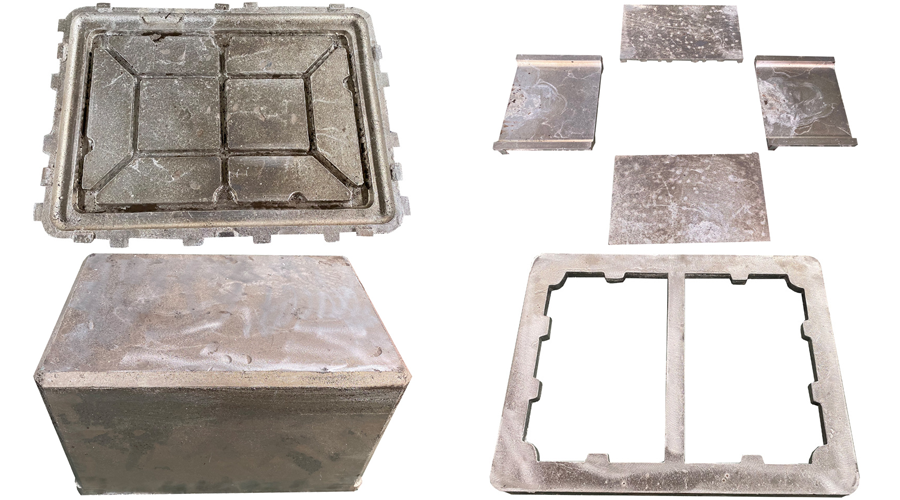

3.Common Casting

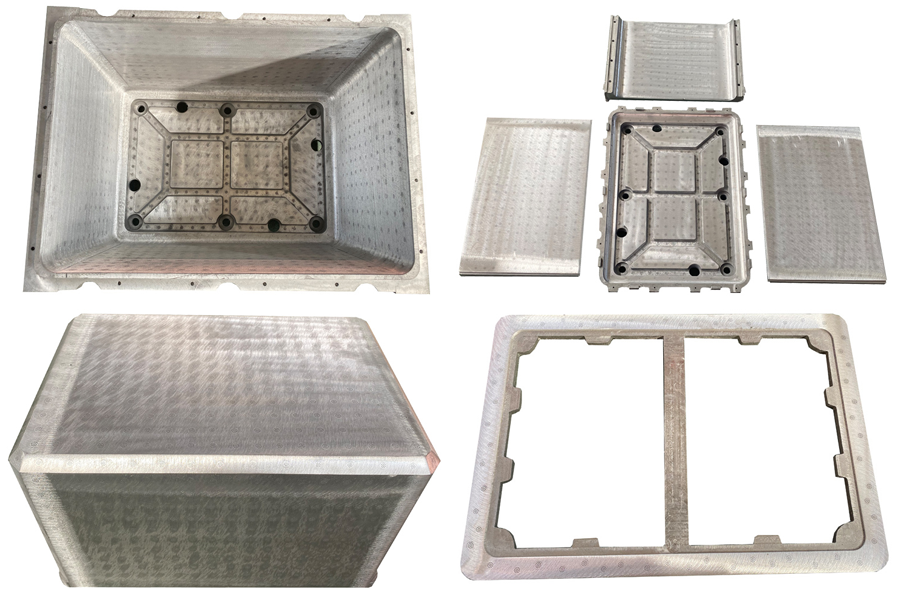

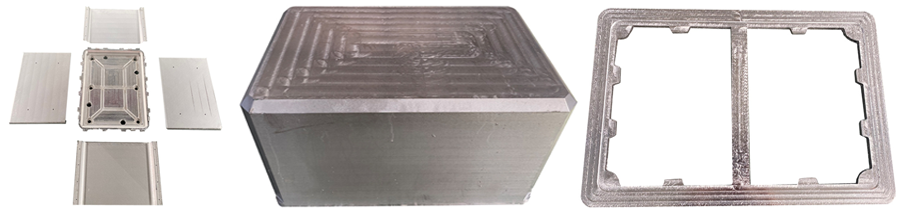

4.CNC Process(Cavity & Core & Press Material)


5.Drill Holes/Install Core Vents /Polishing/Match The Mould


6.Teflon Coated

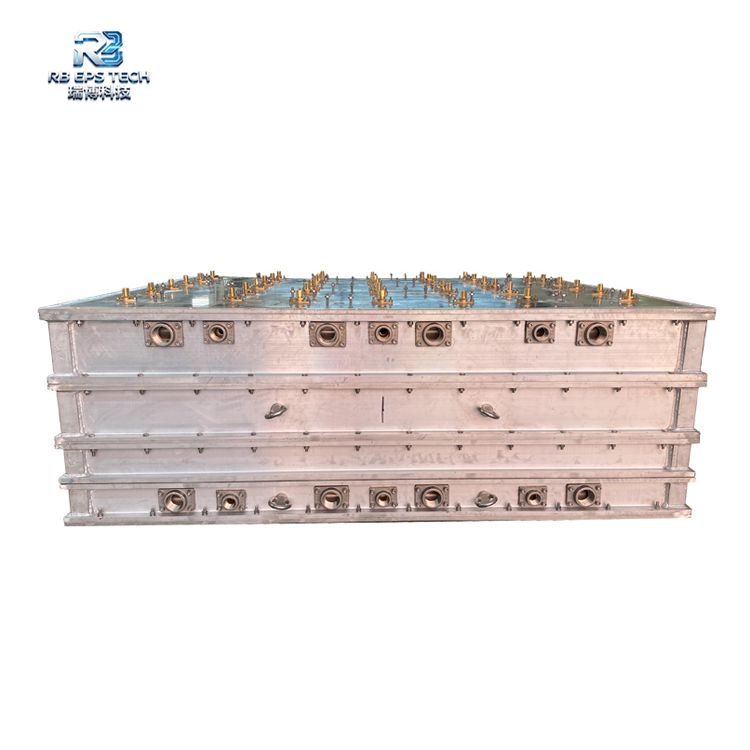

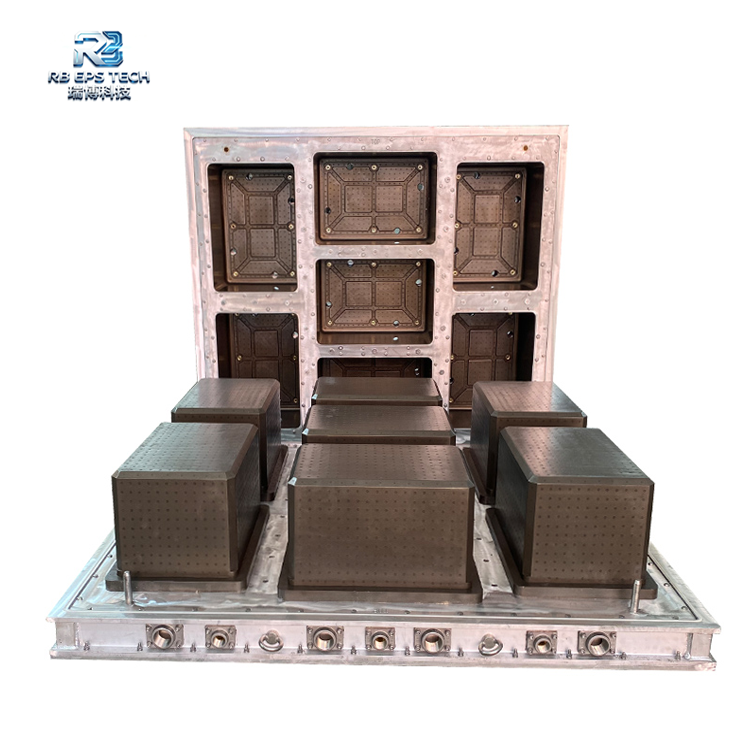

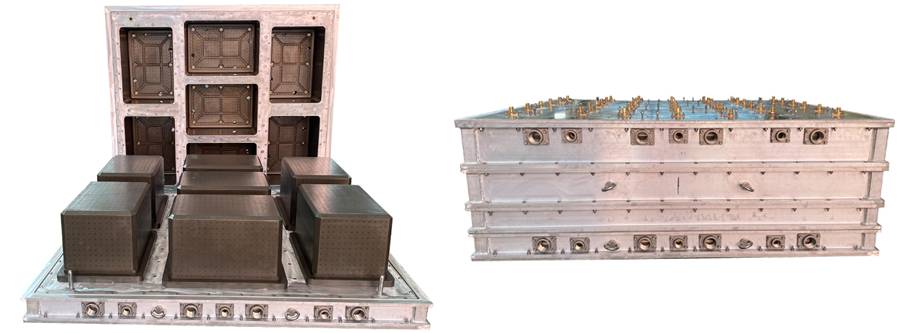

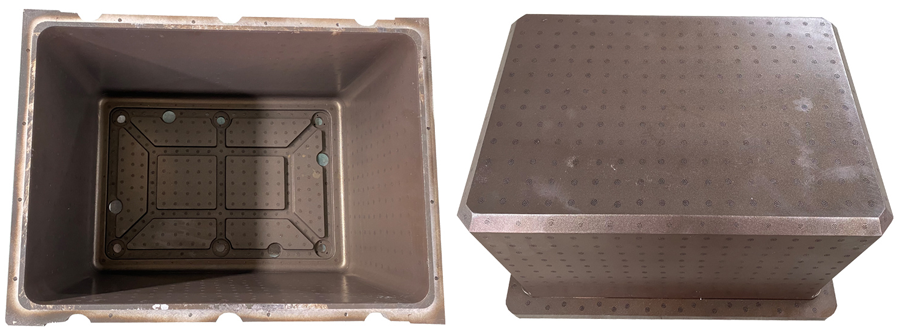

7.Finished Mould(mould testing is available)



Multi-Cavity EPS Foam Fish Fruit Vegetable Box Mould Export to the Philippines

Mould Name

EPS Expanded Polystyrene Fish Box Mould

Export to

Philippines

Machine Brand

1714(BES)

Material

EPS

Shrinkage

0.3%

Wall thickness

9-10mm

Cavity

7

Support

SW25mm

Guide pin

Yes

Crack

10mm

Machine Window

1630*1355

Male Plate

(1649.5-1650)*(1429.5-1430)*12mm

Female Plate

(1649.5-1650)*(1429.5-1430)*12mm

Filling Gun Plate

(1729.5-1730)*(1509.5-1510)*12mm
