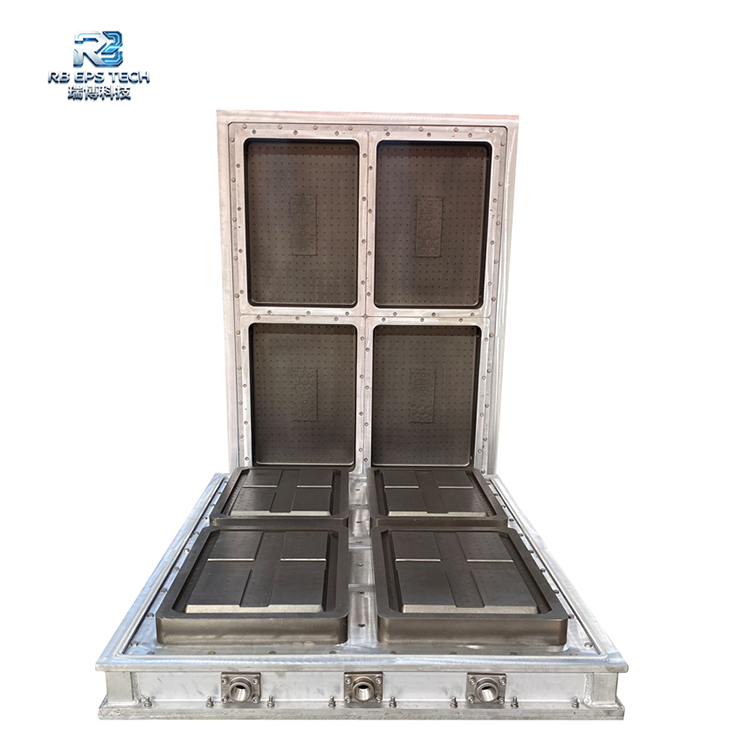

CNC Aluminum Mould Manufacturing for EPS Box

1.Product drawing & mould design made by engineersProduct drawing confirmedMould drawing confirmed2.Wooden Model3.Common Casting4.CNC Process(Cavity & Core & Press Material)5.Drill Holes/Install Core Vents /Polishing/Match The Mould6.Teflon Coated7.Finished Mould(mould testin
Send Inquiry
Order Tracking

Description

Technical Parameters

Order Tracking List:

1.Product drawing & mould design made by engineers

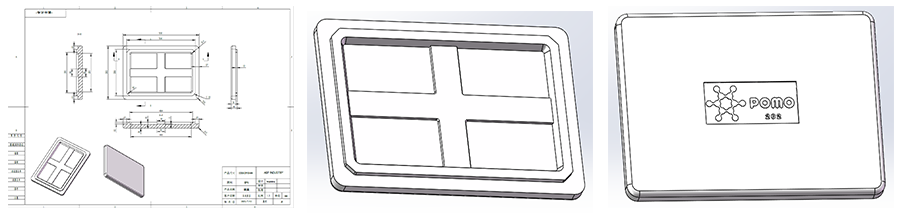

Product drawing confirmed

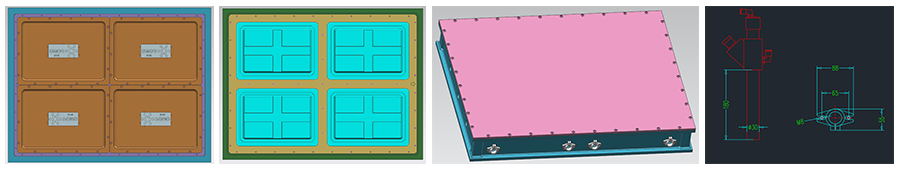

Mould drawing confirmed

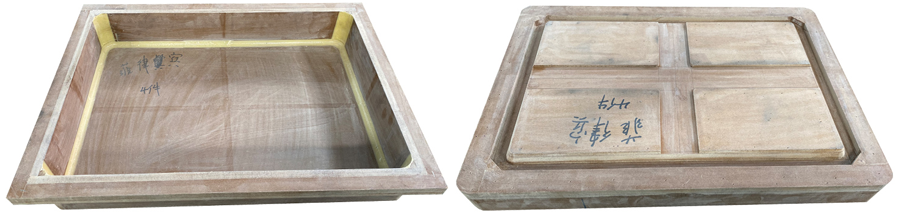

2.Wooden Model

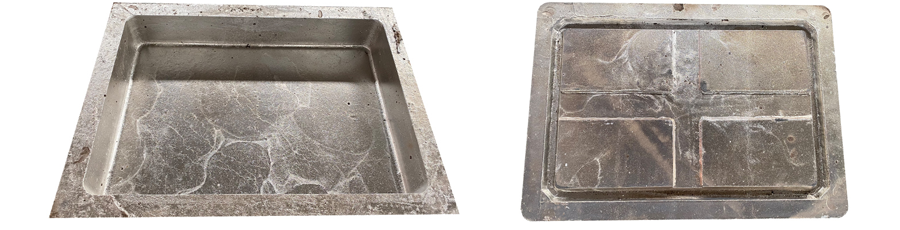

3.Common Casting

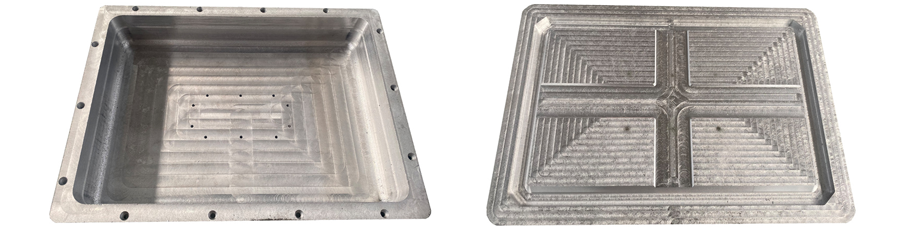

4.CNC Process(Cavity & Core & Press Material)

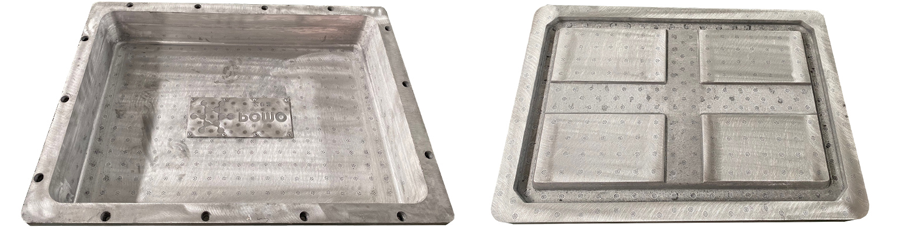

5.Drill Holes/Install Core Vents /Polishing/Match The Mould

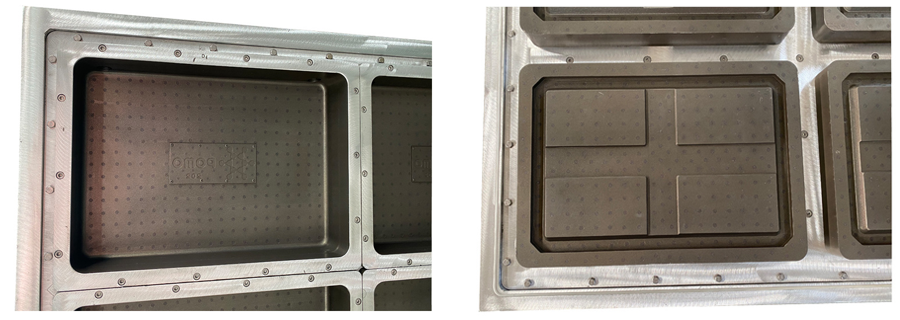

6.Teflon Coated

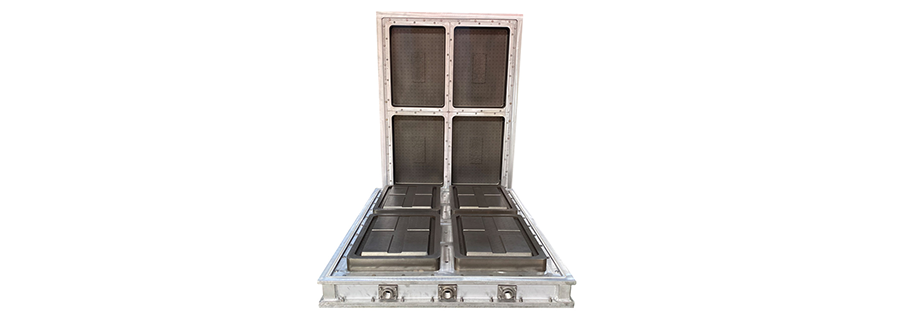

7.Finished Mould(mould testing is available)



CNC Aluminum Mould Manufacturing for EPS Box Lid Export to the Philippines

Mould Name

EPS Expanded Polystyrene Fish Box Lid Mould

Export to

Philippines

Machine Brand

1412(BES)

Material

EPS

Shrinkage

0.3%

Wall thickness

9-10mm

Cavity

4

Support

SW25mm

Guide pin

Yes

Crack


Machine Window

1430*1230

Male Plate

(1279.5-1280)*(949.5-950)*12mm

Female Plate

(1279.5-1280)*(949.5-950)*12mm

Filling Gun Plate

(1359.5-1360)*(1029.5-1030)*12mm
